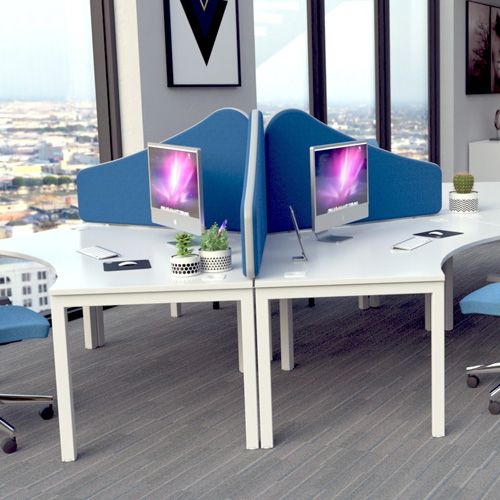

Omega 42mm Acoustic Wave Desk Dividers
The Omega wave desk partitions have a varied height, starting at 600mm and slowly decreasing to 300mm to achieve the wavetop shape. Use the fixed desk panels to frame your own workspace, transforming the areas into a personal and individual area.
Due to the range of widths choose screens to fit to the back and/or the sides for maximum shelter. Manufactured with acoustic foam, the Omega Wavetop dividers are an effective method to reducing noise in louder areas of the office.
Dispatched within 7 working days
- Supplied with drill through clamps
- Upgrade to easy fix clamps for quicker installation
- Black or grey edging options
- Manufactured with 12mm acoustic foam
- Total screen thickness = 42mm
- Made in the UK, by Rap Office Screens
Key Features
Designed for noise absorption, the smooth panel shape also works with modern office designs. Choose from a wide selection of fabrics and sizes to make the most of the desk space.
Opting for the easy fix clamps will promise a swift assembly process and ensure coverage and acoustic properties are intact without fuss. Attach across the back and/or side of the desk dependent on the support needed.
- Helps reduce office noise
- Select from a wide range of fabrics
- Easy fix clamps available
- Smooth wave top shape
- Made to order
Are wave screens better than straight screens?
Both shapes are a great choice, it’s down to preference and the style you would like throughout the office. The wave provides slightly more visibility and provides a shape alternative.
How will acoustics help my space?
The addition of acoustic foam will help with the reduction in noise levels.
By adding the acoustic desktop partitions, the foam will absorb some of the noise, reducing the noise and creating a more peaceful workspace for increased productivity.
How will the desktop divder attach to my desktop?
As standard and included in the cost are the drill through clamps. The drill through option requires drilling through the desktop to secure.
Upgrade easy fix clamps are available, which fasten to the desktop without having to drill through.
Product Specification for the full Omega Desktop Screen range
Measurements
Acoustic desktop screen thickness (Core, foam & fabric) - 42mm
Laminate thickness (Core & laminate) - 20mm
Pinnable thickness (Core & pinnable element) - 36mm
Clamp slots in the frame are;
Desktop Screens less than 899mm - 158mm in from each edge
Desktop Screen more than 900mm - 275mm in from each edge
Materials
Grey or black edging - PVC
Clamps - Steel
Internal - 18mm solid core
HPL – High pressure white gloss laminate
Foam (Acoustic Only) - double layer of 12mm fire retardant acoustic foam on each side
Fire Safety Elements
Foam
12mm Combustion Modified Foam BS 5852-2: using ignition Source 5 Crib
Chipboard
Surface spread of Flames Class 2 tested to BS479-7
MDF
Surface spread of Flames Class 2 tested to BS479-7
Plastic Components
Manufactured using non-flammable, self-extinguishing plastic.
Steel
Components are not considered to be a fire hazard.
Laminate
Tested to standard UNE EN 13501-1:07+A1:2010
Fabric (Pinnable & Acoustic Only)
Woven fabric - Omega Standard
Woven Collection has been tested to BS 5867-2: 2008 & BS 7176 2007
Universe Fabric - Omega+
Universe Collection has been tested to BS 5867-2: 2008 Type B
Laminate
High pressure laminate (HPL) white gloss
